Wall chaser EMF 150.1 P wet and dry

Model: EMF 150.1 P.1

Description:
Wall chaser EMF 150.1 P wet and dry

Equipped:
in a case incl. 2 diamond blades premium and assembly tools

Use:

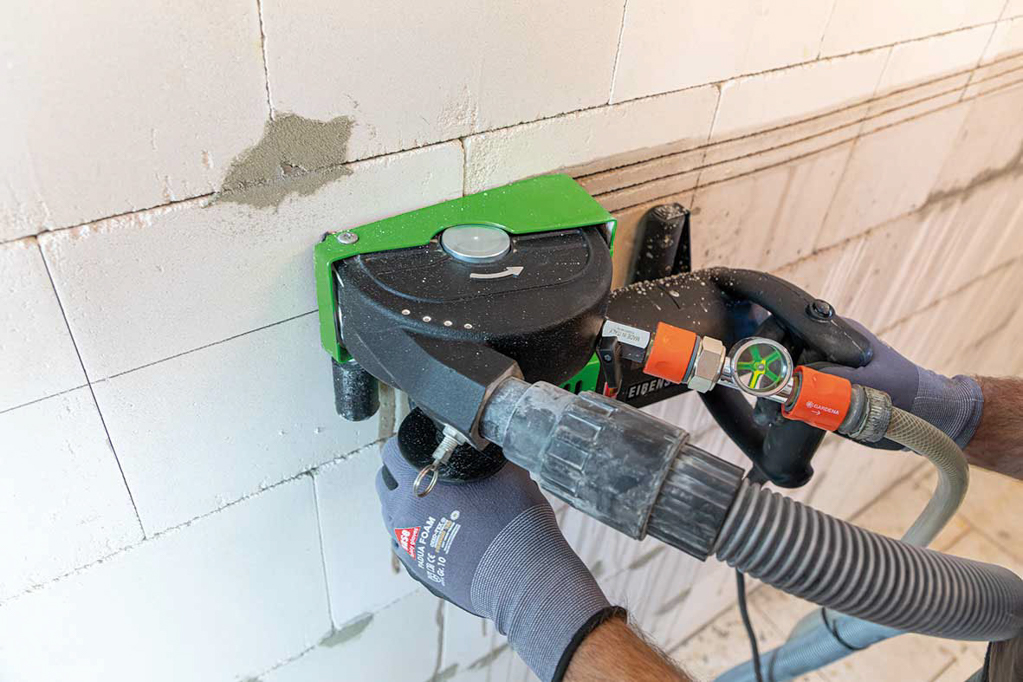

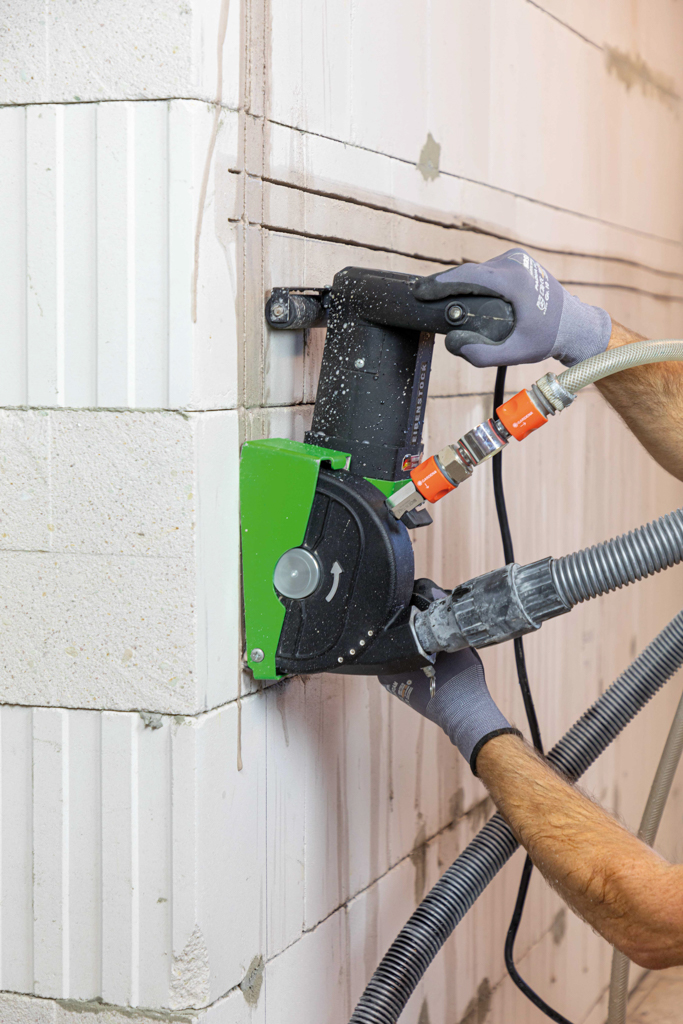

– Milling of slots and ducts in concrete, sand-lime brick, brickwork
– Electrical installations, sanitary, heating and ventilation construction

Features:
– Protective hood with integrated water supply
– When wet chasing, the suction nozzle can be closed with a plug – alternatively, milling sludge can be sucked off
– Connecting cable with PRCD circuit breaker
– Electronic – soft start, temperature and over current cut-off, optical overload indication
– Parallel handle position – comfortable working position
– Adjustable milling depth – without the need for a tool
– Spindle lock – easy blade change
– Slim design, small distance between dust hood and diamond blades for working up to 18 mm from the edge
– Slot widths of 7-46 mm adjustable in 1 mm steps
– Closed hood – optimal air flow, easy removal of fragments
– Machine works in cutting direction – allows a comfortable handling
– EIBENSTOCK “Easy Break Out” – Fast breaking by a center slot – Distance disks for the using of 3 blades (accessory)
– Nozzle diameter Ø 35 mm – connection to the DSS industrial vacuum cleaner series

Technical specifications:
Power input: 2.300 W
Rated voltage: 230 V ~
Rated speed: 4.300 1/min
No load speedl: 7.500 1/min
Disc diameter: 150 mm
Spindle connection: Ø 22,2 mm
Max. milling depth: 45 mm
Max. slot width: 46 mm
