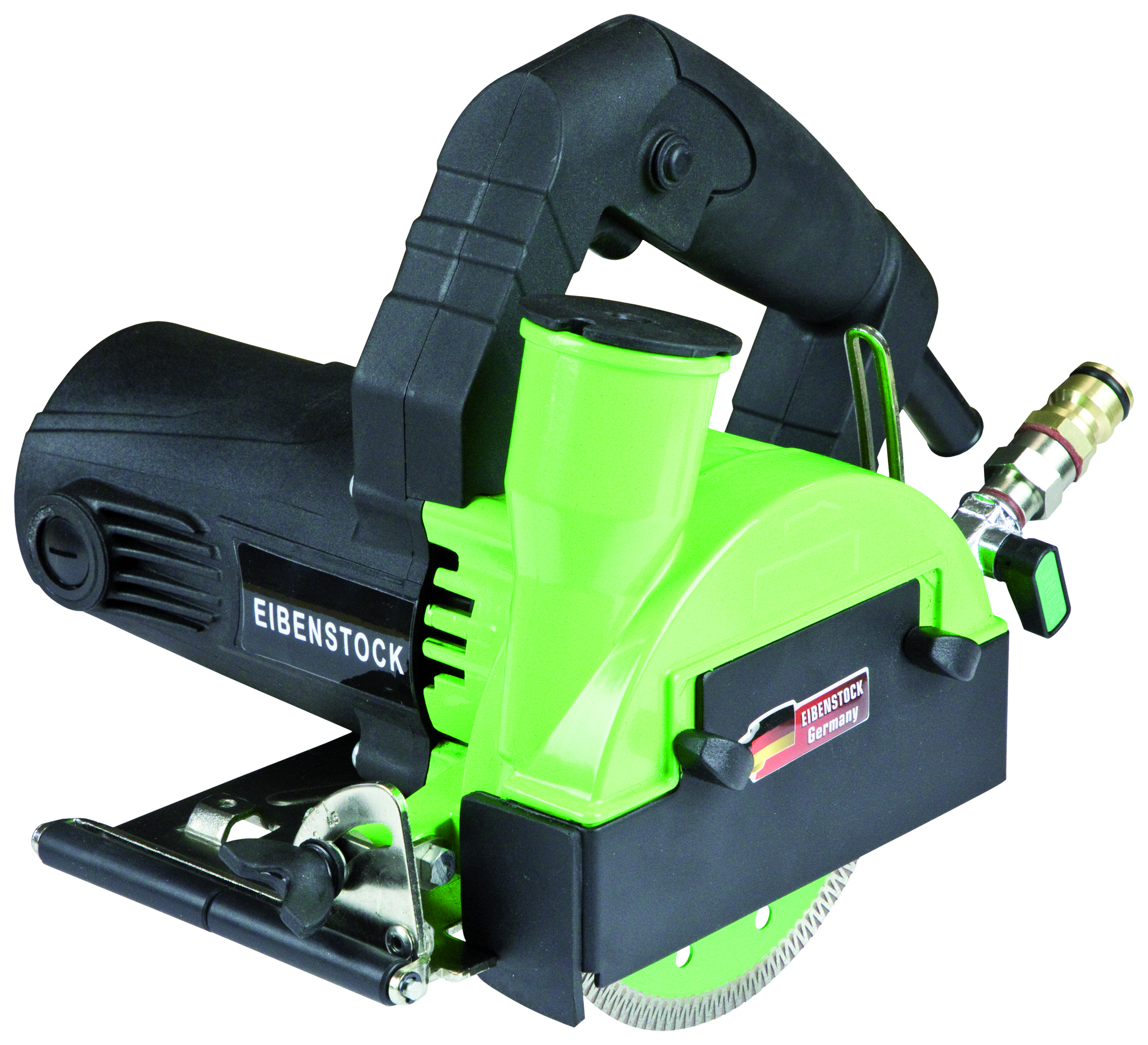

Diamond saw EDS 125 (wet and dry cutting)

285,00 iva escl.

Diamond saw EDS 125 (wet and dry cutting)

3 in stock

SKU: 0660V000 Category: Tags: , , , , , , ,

Brand: EE
Code: 0660V000

Model: EDS 125
Description:
Diamond saw EDS 125 (wet and dry cutting)
Equipped:
in a case incl. diamond cutting disc Ø 125 mm and assembly tools

Use:

– Wet and dry cutting of different stones, e.g. natural stone, stoneware
– Cutting of tiles and plates
– Joint milling
– Curved cuts (with corresponding diamond blades)
– Tilers and pavers

Features:

– Mitre adjustment (stepless up to 45˚) and cutting depth adjustment (stepless up to 36 mm) without the need for tools
– Immersion function – you can begin the cut with the machine in the working area
– Roller guided plate – smooth guiding, protects the surface
– Integrated water supply with flow regulator – easy adjustment of the water-volume and dust free working while wet cutting
– Nozzle diameter 35 mm – direct connection of industrial vacuum cleaner of EIBENSTOCK DSS series
– Guide rail – accessory for precise cuts

Technical specifications:

Power input: 1.250 W
Rated voltage: 230 V ~
No load speedl: 12.000 1/min
max. Disc diameter: 125 mm
max. cutting depth:36 mm
Max: inclination: 45°
Spindle connection: 22,2 mm
Weight 11,520 kg
Dimensions 30 × 60 × 32 cm
Weight

2.9 Kg

Brand

EE
